3,500,000,000₫

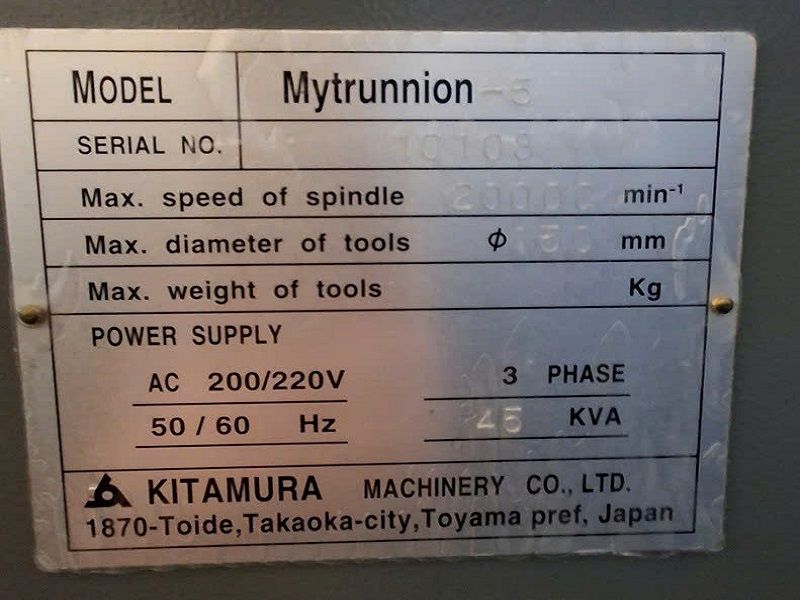

Model: Mytrunnion-5
Year: 2010

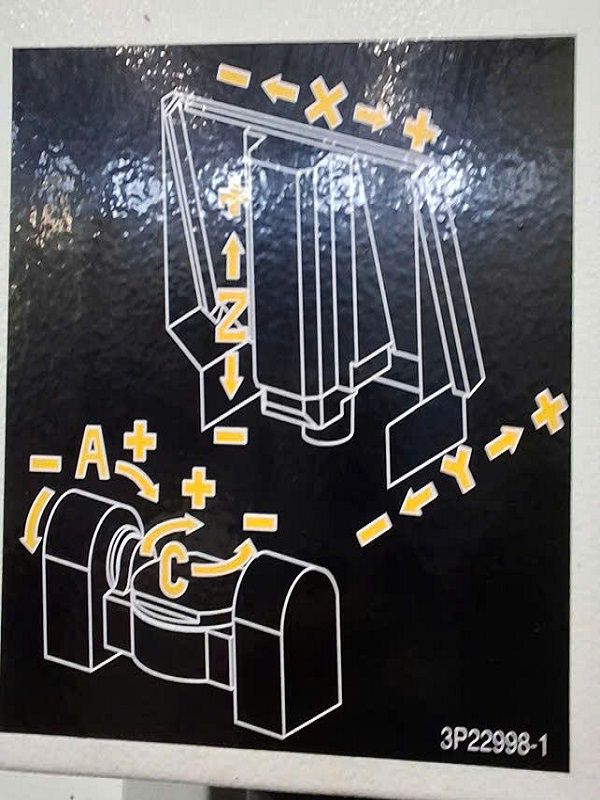

Axis travel: X815mm, Y745mm, Z500mm, A: -120 °~+30 °(0.001 °), C: 360 °(0.001 °)

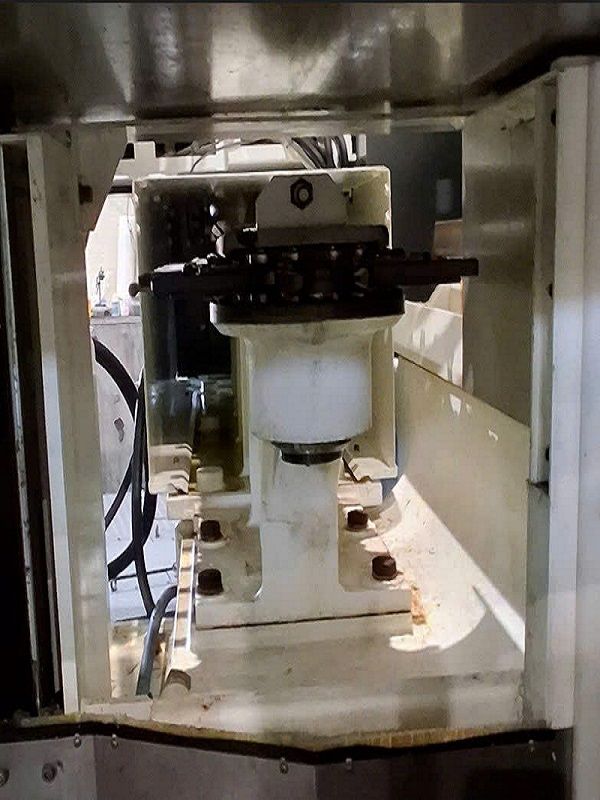

Table size: Ø630mm
BT40/ 40Tool
Spindle speed: 20000rpm (Gear. 4-step)(13Kw-AC/15min)

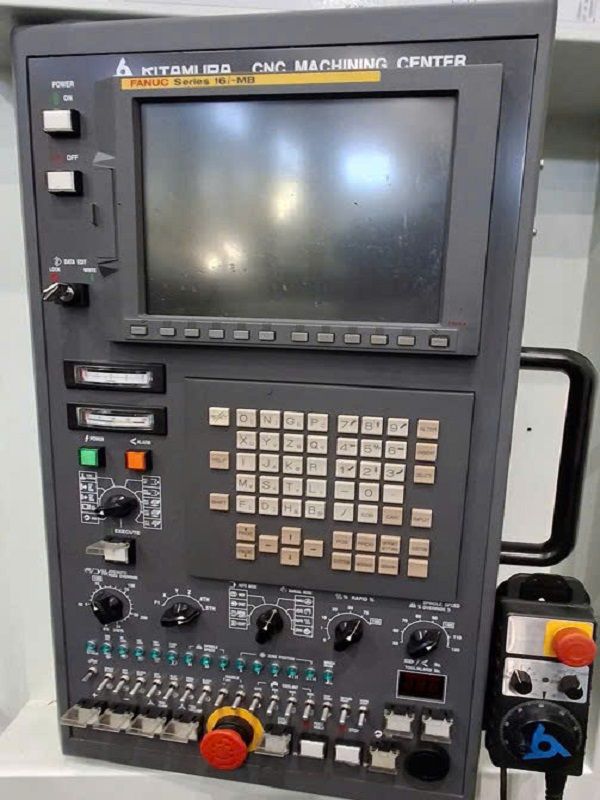

Control: Fanuc 16iMB
Distance from table surface to spindle gage plane: 500mm
Max. Worpiece: Ø630mm H500mm
Max. Load cap: 400 kg
Machine weight: 17400 kg
Machine size: 2428mm x 4644mm x 3726mm
Location: Japan
