3,950,000,000₫

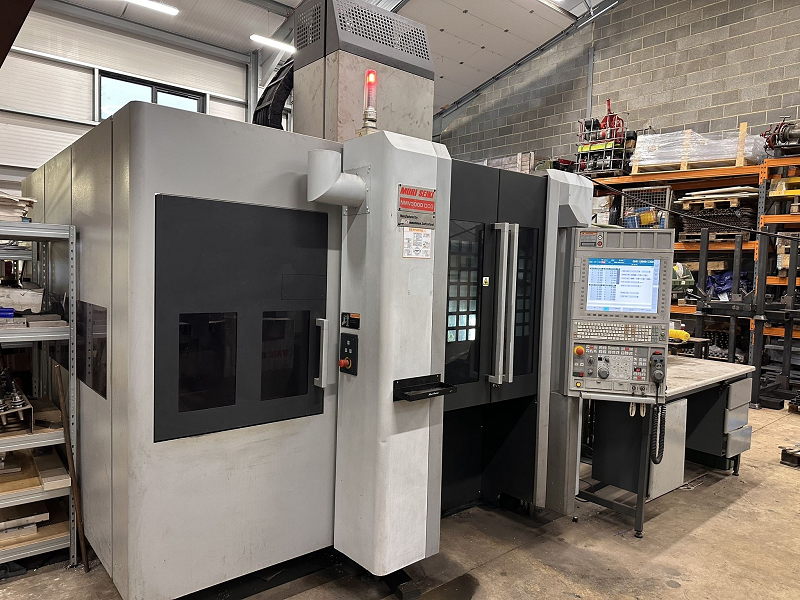

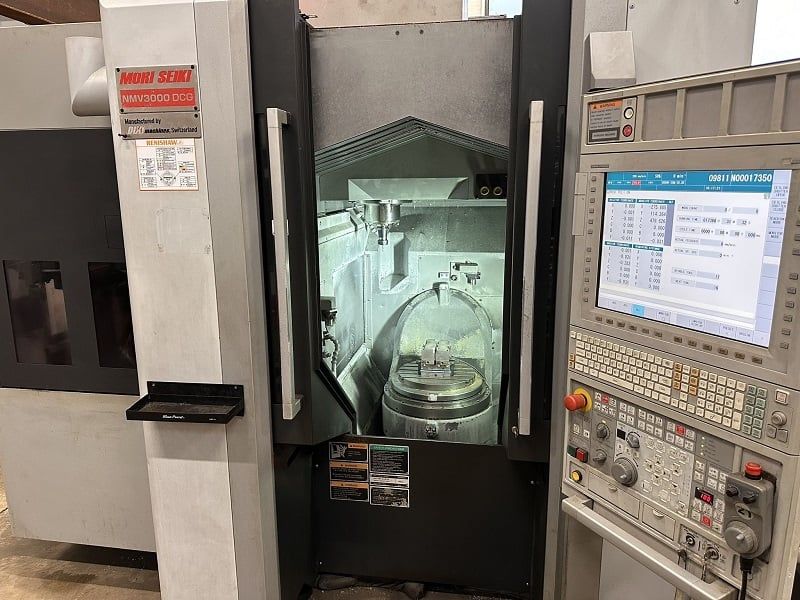

Model: NMV3000 DCG
Year: 2014

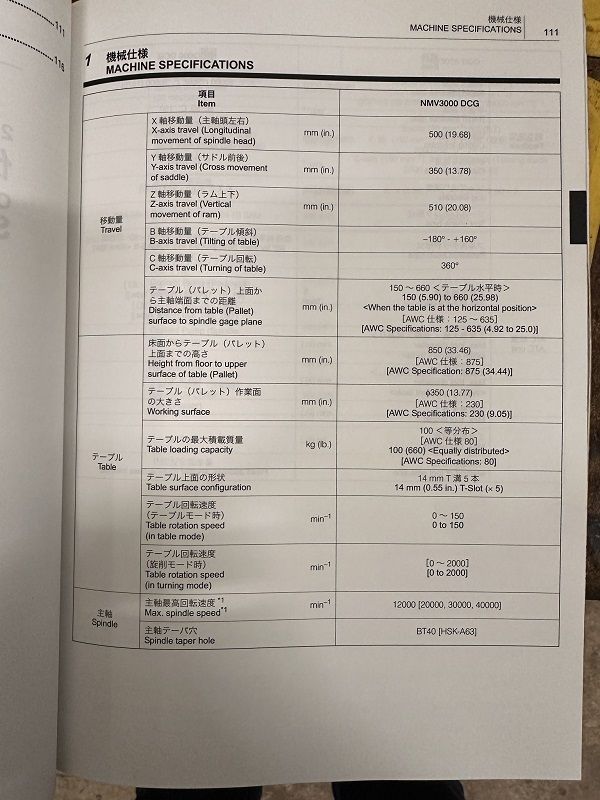

Axis travel: X500, Y350, Z510 mm; B {Tilting of table} -180° - +160° ; C {Turning of table} 360°
BT40/ 61 Tools
Spindle speed: 12000 rpm
Height from floor to upper surface of table (Pallet): 850 mm
Table (Pallet) working surface: Ø350 mm
Table (Pallet) loading capacity: 100 kg
Table (Pallet) surface configuratin: 14 mm T-slot x5
Max. workpiece swing diameter: Ø350 mm
Max. workpiece height: 300 mm
Distance from table surface to spindle gage plane: 150-660 mm
Machine weight: 10000 kg
Locatin: Japan
